Patio Ponds, Building America's Best Filters Since 1987
Patio Ponds Water Garden Filtration

Patio Ponds Little Sub Pond Filter

The Little Sub is perfect for small ponds. It is very efficient, yet compact enough to hide. The Little Sub has up to 10 times the filtration area of any other submersible filter.

Inlet Output Max Flow Dimensions (L x W x H) Pond Size MSRP
N/A 3/4" 1000 GPH 18" x 14" x 6.5" 500 gal $118.95
Patio Ponds Little Sub Water Garden Filter

Click here for Schematic
Click here for Instructions

Patio Ponds Little Tub Pond Filter

The Little Tub is the first of Patio Ponds' external filters. This unit provides premium filtration, and is very simple to clean. The Little Tub features a spray bar, clog-resistant filter matting, and emergency overflow protection.

Inlet Output Max Flow Dimensions (Dia. x Height) Pond Size MSRP
3/4" 1 1/2" 800 GPH 21.5" Dia. x 14" H 750 gal $179.95
Patio Ponds Little Tub Water Garden Filter

Click here for Schematic
Click here for Instructions

Patio Ponds Little Sister Water Garden Filter

The Little Sister 2000 has been setting industry standards for over a decade with its two-chamber filter design. With gate valves to drain the chambers, the filter takes minutes to clean.

Inlet Output Drain Max Flow Dimensions (L x W x H) Pond Size MSRP
3/4" 1 1/2" 1 1/2" 800 GPH 33" x 19.5" x 18" 2,000 gal $429.95
Patio Ponds Little Sister Pond Filter

Click here for Schematic
Click here for Instructions

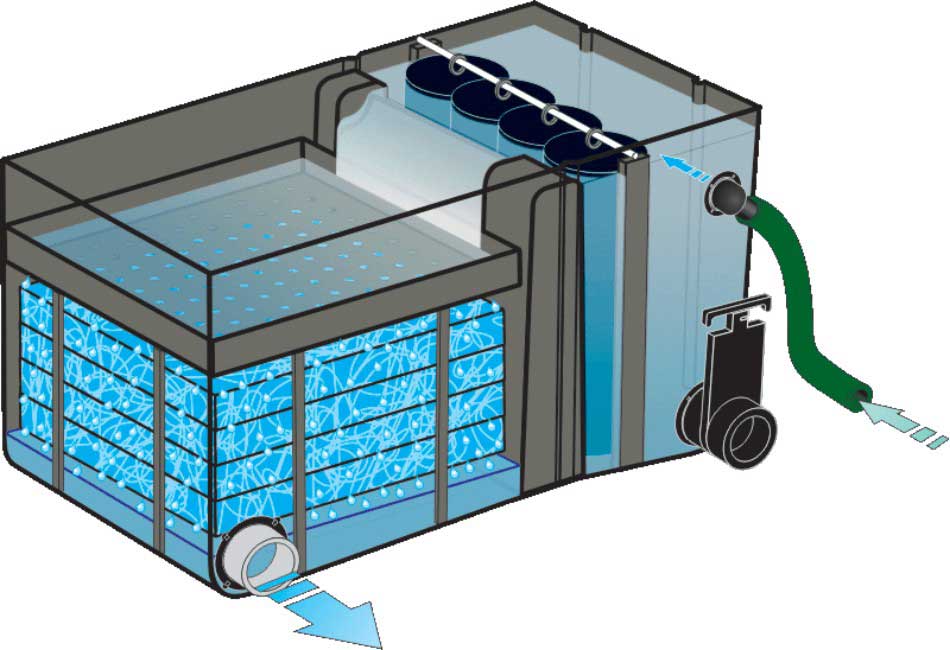

Patio Ponds and Matala Vista Clear Water Garden Filter

The Vista Clear is the latest and greatest from Patio Ponds. This compact filter is a wet-dry design, which gives maximum mechanical and biological filtration. Using the newest bio filter media on the market, Matalaâ„¢, the VistaClear can filter up to a 2,000 gallon pond.

Inlet Output Drain Max Flow Dimensions (L x W x H) Pond Size MSRP
1" 2" 2" 900 GPH 23.5" x 12.5" x 15" 2,000 gal $359.95
Patio Ponds and Matala Vista Clear Pond Filter

Click here for Schematic
Click here for Instructions

Patio Ponds Big Sister 3500 Water Garden Filter

The Big Sister 3500 is a larger version of our extremely popular Little Sister 2000. This filter features the same easy-to-clean system as the Little Sister 2000; however, this filter is designed for mid-sized koi ponds.

Inlet Output Drain Max Flow Dimensions (L x W x H) Pond Size MSRP
1" 3" 1 1/2 3,000 GPH 46.5" x 29.5" x 22" 3,500 gal $1,029.95
Patio Ponds Big Sister 3500 Pond Filter

Click here for Schematic
Click here for Instructions

Patio Ponds Cyclone 500 System Water Garden Filter

The Cyclone 5000 is ideal for a 3000-5000 gallon koi pond. With full lids, drain valves, and 3"inter-connects, this is a simple filter, both to install and clean.

Inlet Output Drain Max Flow Dimensions (L x W x H) Pond Size MSRP
3" 3" 1.5" 3,000 GPH 126" x 38" x 38" 5,000 gal $2,159.95
Patio Ponds Cyclone 5000 System Pond Filter

Click here for Schematic
Click here for Instructions

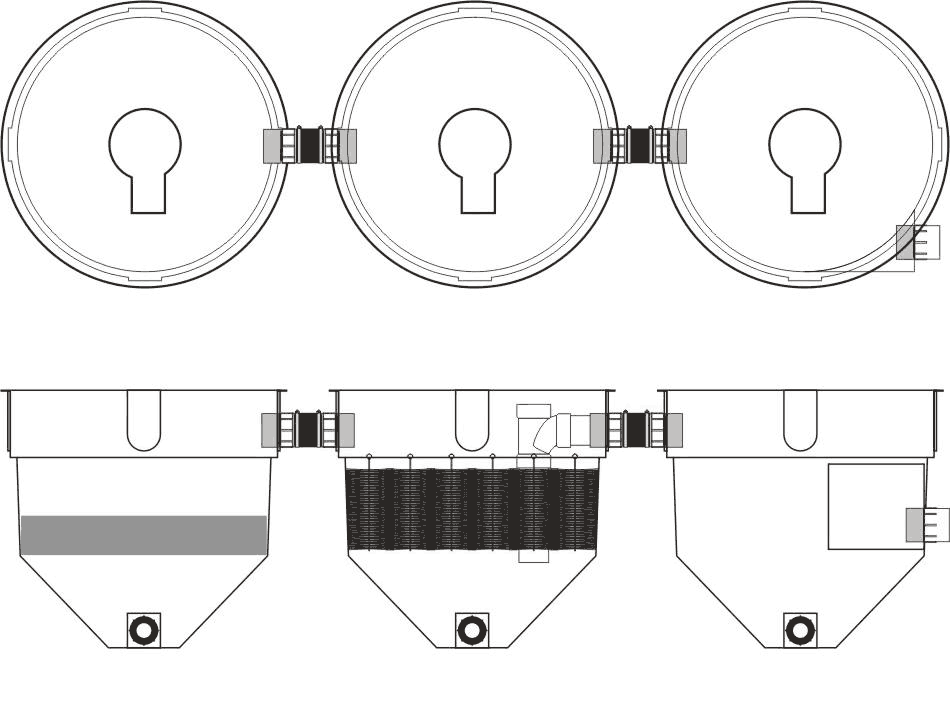

Patio Ponds Cyclone 7500 System Water Garden Filter

The Cyclone 7500 is the larger version of the ever so popular Cyclone 5000. This Cyclone is suitable for extra-large ponds (4,000-7,500 gallons).

Inlet Output Drain Max Flow Dimensions (L x W x H) Pond Size MSRP
4" 4" 2" 4,000 GPH 132" x 43" x 39" 7,500 gal $2,879.95
Patio Ponds Cyclone 7500 System Pond Filter

Click here for Schematic
Click here for Instructions

Patio Ponds Bio Pro Water Garden Filter

The Biological System combines one of our mechanical filters with two of our biological supports. This filter is easy to clean with independent drains on each unit.

Inlet Output Drain Max Flow Dimensions (L x W x H) Pond Size MSRP
1 1/2" 2" 2" 2,500 GPH 4,000 gal $1,479.95
Patio Ponds Biopro Pond Filter

Click here for Instructions

Patio Ponds Waterfall Water Garden Filter

The Waterfall System is very similar to the Biological System, but features a spill way for a more finished look. This filter includes one biological filter, one mechanical filter, and one waterfall filter.

Inlet Output Drain Max Flow Dimensions (L x W x H) Pond Size MSRP
1 1/2" 2" 2" 3,000 GPH 6,000 gal $1,519.95
Patio Ponds Waterfall Pond Filter

Click here for Instructions

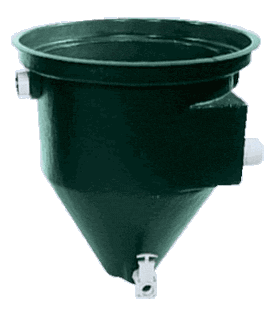

Patio Ponds Cyclone 2 Water Garden Filter

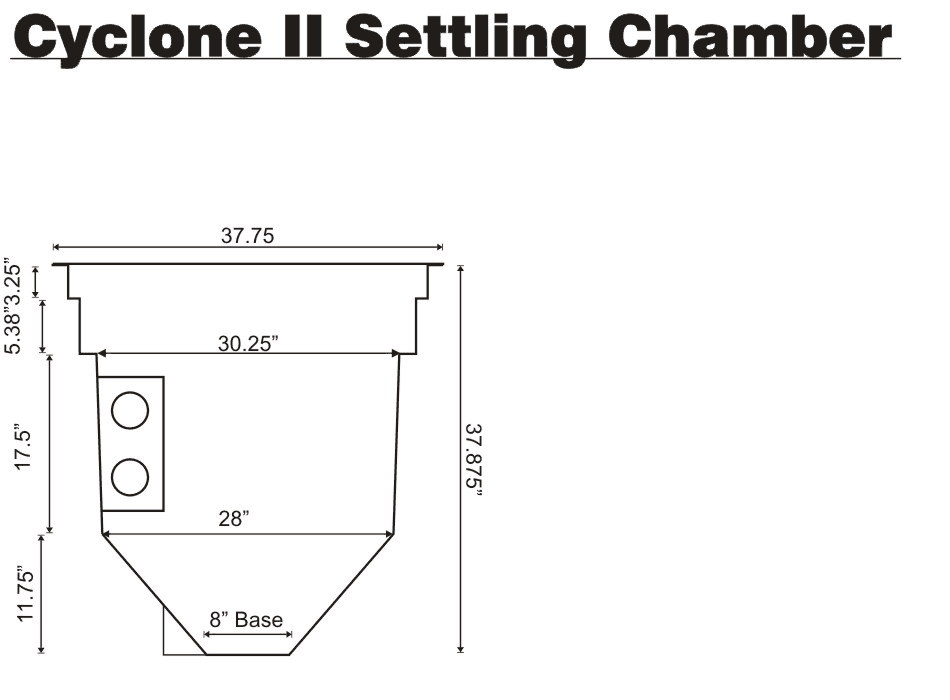

The Cyclone II is the stand-alone settling chamber from the smaller Cyclone System 5000. The swirling motion removes debris by utilizing centrifugal force. The system is then drained from the bottom for effortless cleaning.

Inlet Output Drain Max Flow Dimensions (Dia. x Height) Pond Size MSRP
3" 3" 1.5" 3,000 GPH 38" Dia. x 38" H N/A $589.95
Patio Ponds Cyclone 2 Pond Filter

Click here for Schematic
Click here for Instructions

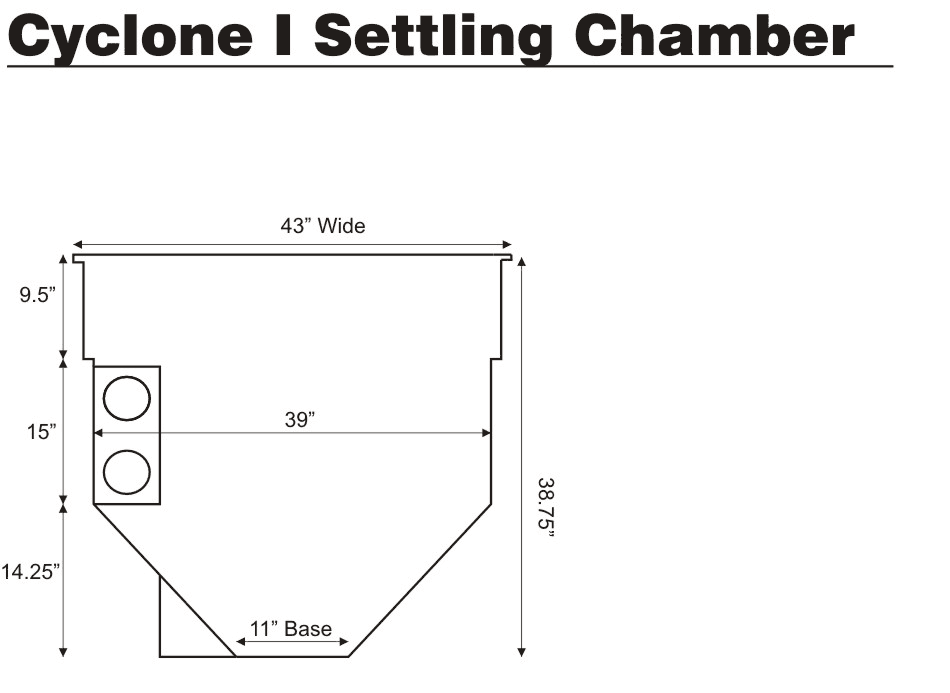

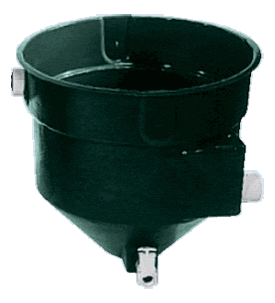

Patio Ponds Cyclone 1 Water Garden Filter

The Cyclone I is the stand-alone settling chamber from the larger Cyclone System 7500. This chamber features the same technology as the Cyclone II, but in a larger size.

Inlet Output Drain Max Flow Dimensions (Dia. x Height) Pond Size MSRP
4" 4" 2" 4,000 GPH 43" Dia. x 39" H N/A $929.95
Patio Ponds Cyclone 1 Pond Filter

Click here for Schematic
Click here for Instructions

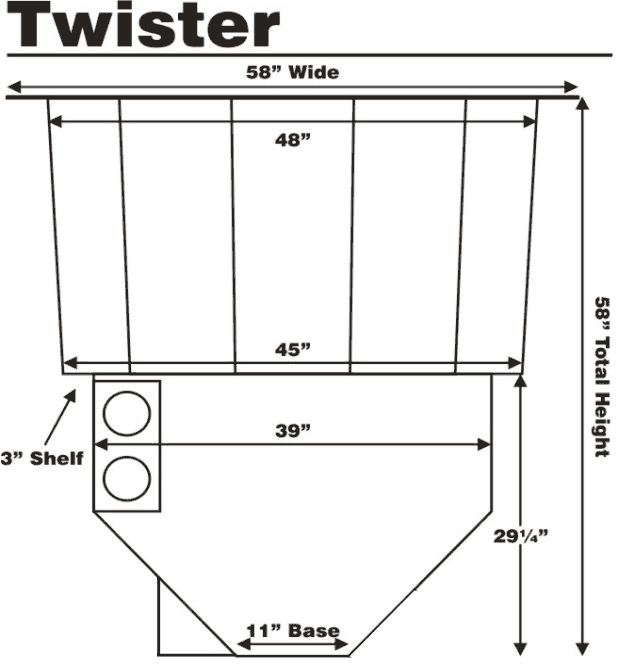

Patio Ponds Twister Water Garden Filter

The Twister has a flow rate up to 6,000 gph and is designed for ponds over 6,000 gallons. This filter, like the smaller Cyclone I and II, uses centrifugal force to remove solid wastes.

Inlet Output Drain Max Flow Dimensions (Dia. x Height) Pond Size MSRP
4" 4" 3" 5,000 GPH 58" Dia. x 58" H N/A $1,399.95
Patio Ponds Twister Pond Filter

Click here for Schematic
Click here for Instructions

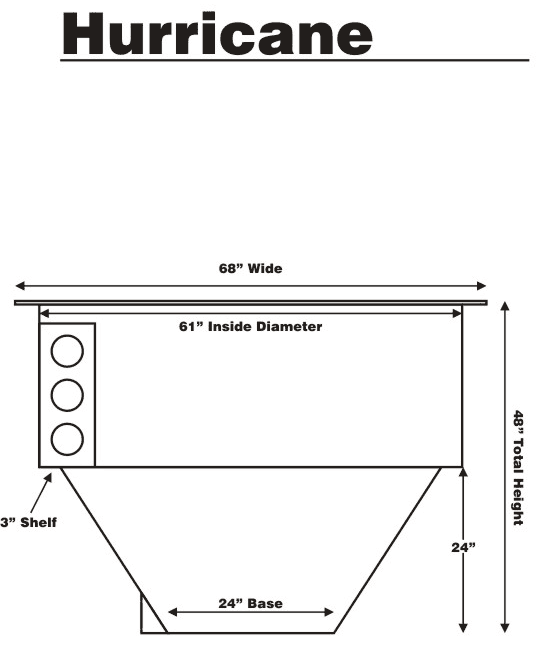

Patio Ponds Hurricane Water Garden Filter

The Hurricane is an extremely large settling chamber. With 4" inlets, 4" bottoms drains, and a 4" discharge, this filter can easily handle ponds over 8,000 gallons, with a flow rate of 6,000 gph.

Inlet Output Drain Max Flow Dimensions (Dia. x Height) Pond Size MSRP
4" 4" 4" 6,000 GPH 68" Dia. x 48" H N/A $1,799.95
Patio Ponds Hurricane Pond Filter

Click here for Schematic
Click here for Instructions

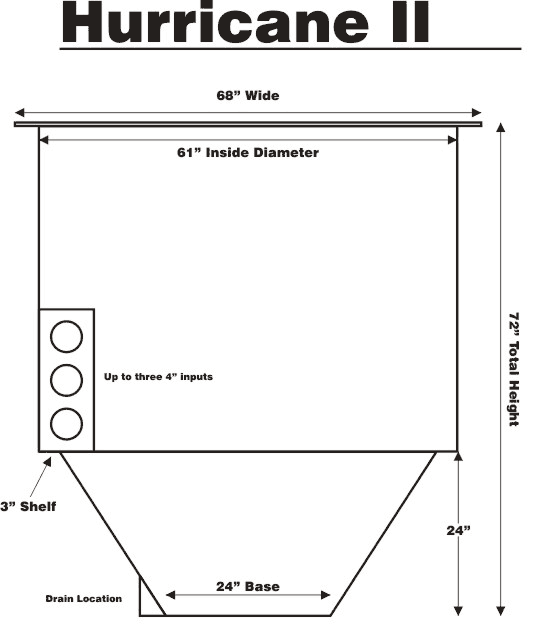

Patio Ponds Hurricane 2 Water Garden Filter

The Hurricane II is the largest settling chamber we produce. With the ability to handle 9,000 gph, this monster of a filter is used for 10,000+ gallon ponds.

Inlet Output Drain Max Flow Dimensions (Dia. x Height) Pond Size MSRP
4" 4" 4" 9,000 GPH 68" Dia. x 72" H N/A $2,519.95
Patio Ponds Hurricane 2 Pond Filter

Click here for Schematic
Click here for Instructions
