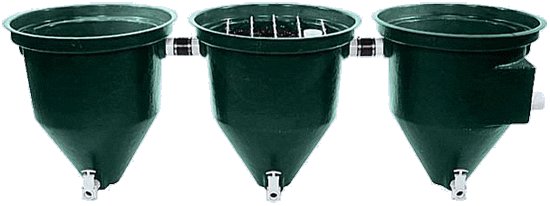

Patio Ponds Cyclone 5000 Pond and Water Garden Filter

Patio Ponds Cyclone 5000 Pond and Water Garden Filter

Designed for mid-sized koi ponds, the Cyclone 5000 System provides excellent mechanical & biological filtration in an easy-to-clean system. As a bonus, the Cyclone 5000 System can be customized to fit your needs with optional 3" and 4" inputs. The Cyclone 5000 System works best as a Gravity Fed System, but can be used as a Combination System. Purchase it as a standard system and add the media of your choice, or buy just the filter bodies to build your own custom filter system. Unlike plastic cones, the Cyclone series of filters are constructed of heavy-duty fiberglass and will not warp or distort. Every system is made in the USA and features our exclusive Lifetime Filter Body Guarantee.

Inlet Output Drain Max Flow Dimensions (L x W x H) Weight MSRP
3" 3" 1 1/2" 3,000 GPH 126" x 38" x 38" 180 lbs. $2,159.95

Vortex Chamber The First Chamber is for removing large solids and debris coming from the Bottom Drain or Pump. The water enters this chamber tangentially allowing for the heavier particles to sink to the bottom and the clean fresh water to raise to the top and move on to the Brush Chamber. At the recommended flow rates, this chamber is 95% effective removing solids.
Brush Chamber The Second Chamber is for removing tiny particles that were not removed in the Vortex Stage. This chamber is an "upflow" design to keep all particulates on the bottom of the 24 brushes. The debris will settling in the bottom of this chamber, along with clinging to the brushes. Only fresh, particle free water will be able to move on to the Bio Chamber.
Bio Chamber The Final Chamber is biologically active for breaking down dissolved toxins. This Chamber is the most customizable. It comes with two 38" diameter x 2" thick white filter mats. Also included is a bio-plate for adding other things to your Bio-Chamber. The plate comes with holes drilled in it for airstones and other media. We offer Circle Matala™ custom cartridges for this Chamber. After the water passes through the bio-media, it leaves the system from a 1 1/2" drain in the bottom. Most external pumps are 1.5" or 2" inputs so there is little to no additional adapters needed.

Features:
• Rigid fiberglass construction
• Full Lids
• Vortex settling chamber removes large debris
• Optional second input for dual bottom drain applications
• 1½” drain with easy open drain valve included
• Bulkheads and PVC adapters included
• Unit is free standing or can be burried.

Recommended Pumps/Accessories:
Submersible Pumps Not Recommended
External Pumps • Sequence 1000 Pump, 3200SEQ20
• Sequence 1000 Pump, 4300SEQ20
